Gallon Water Meter

Compliance with Standard Technical data conforms to AWWA C70O Standard




Features

  1. Operating on a rotary piston principle
  2. Low starting flow rate and excellent metrological performance
  3. Magnetic drive, lower transmission resistance
  4. Copper encapsulated register and heat treated glass to eliminate dirt, moisture, infiltration and lens fogging
  5. The register can be replaced without removing the meter from the line.

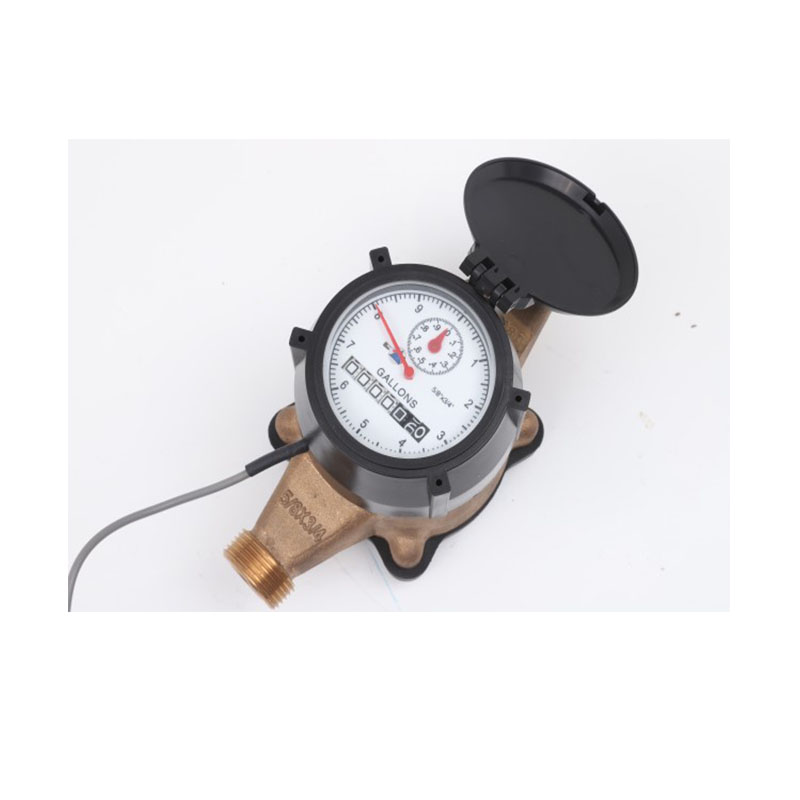

  6. The register has a straight reading odometer typedisplay and a 360 test circle with center sweep hand,a low flow test dial hand, a leak indicator
  7. The main case material options: Brass, Bronze and Non-lead Bronze



Compliance with Standard

Technical data conforms to AWWA C70O Standard



Option

  1. Pulse output for selecting Installation Requirements
  2. Pipeline must be flushed before installation
  3. The meter can be installed in horizontal, vertical or inclined position
  4. A horizontal position with the register face upwards is recommended
  5. The meter should be constantly full of water during operation
